ZHZWJ accumulation conveyor
ZHZWJ4 and ZHZWJ6 accumulation and release suspended conveyor systems are specially designed to meet the needs of highly industrialized production. They adopt the world's most advanced "wide push rod" conveyor proprietary technology and are more reliable and flexible. sex.
Key words:
ZHZWJ accumulation conveyor
Classification:
- Product Description
-
- Commodity name: ZHZWJ accumulation conveyor
ZHZWJ4 and ZHZWJ6 accumulation and release suspended conveyor systems are specially designed to meet the needs of highly industrialized production. They adopt the world's most advanced "wide push rod" conveyor proprietary technology and are more reliable and flexible. sex.
ZHZWJ4 and ZHZWJ6 accumulation and release suspended conveyor systems are specially designed to meet the needs of highly industrialized production. They adopt the world's most advanced "wide push rod" conveyor proprietary technology and are more reliable and flexible. sex.
The wide push rod accumulation conveyor fundamentally improves the transfer method of the accumulation trolley, simplifying the original two-step backward rail transfer into one side-pushing transfer, shortening the transfer time, speeding up the production cycle, and the whole machine system The wiring is compact, which significantly improves the effective utilization of process lines.
ZHZWJ4 and ZHZWJ6 accumulation conveyor systems adopt special single-sided flanged high manganese alloy channel steel for the load-bearing rails, so that the contact between the guide wheel of the accumulation trolley and the track changes from the original line contact to surface contact, which improves the system Operational stability and reliability. The new front trolley adopts a unique design, which organically combines the lifting claw and the anti-escape claw into one body, simplifying the overall structure and ensuring the flexibility and reliability of the vertical lifting of the lifting claw. The front shovel and tail shovel are novel in design, making the accumulation and discharge of the system stable and precise. The switch adopts a brand-new design, abandoning the original transmission method, so that various types of switch can completely form a standardized series and simplify the line design process.

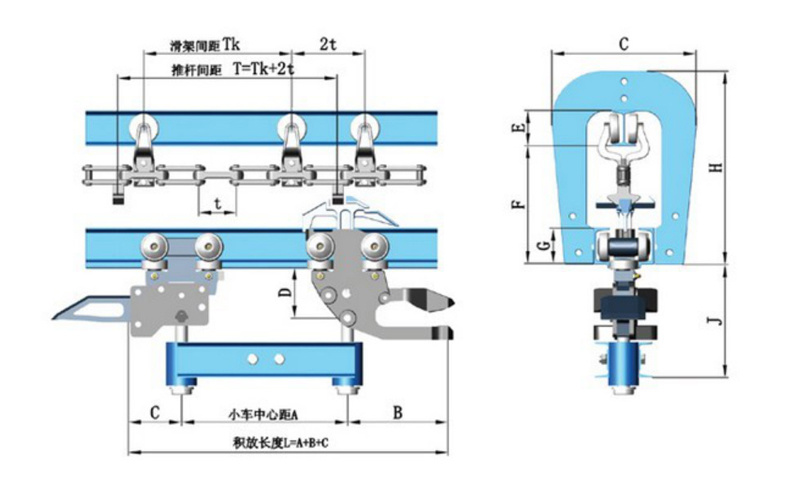

ZHZWJ series accumulation conveyor chain and train set technical parameters
Model
Parameters
t
A
B
C
D
E
F
G
H
J
L
ZHZWJ4
102.4
optional
295
160
140
100
352
103
564
311
optional
ZHZWJ6
153.2
optional
305
165
175
100
381
148
610
405
optional
